VGKL Laboratory Catalogue Issue 15


Main -> Heating units, refrigerating units -> Temperature controllers -> Metal block thermostats

LS Thermostats "Life Science", VLM

With their highly accurate temperature control, LS thermostats are optimized for applications in molecular biology or clinical laboratories. They ensure fast heating without undesirable overshooting of the setpoint temperature. Particularly compact design of the stainless steel housings for small footprint on the work table. Interchangeable heating blocks can be manufactured to match all vessels and microplates used in your laboratory. Please enclose a sample with your order if applicable.

Working temperature 5°C > ambient temperature max. 130°C
Microprocessor PID control with timer and ramp function
Membrane keyboard with LED display resolution 0.1°C
Temperature constancy ± 0.1°K
Calibration function for offset readjustment

LS thermostats for 1 heating block HB-LS1 or 2 heating blocks HB-LS1H

	Type	Temperature max. °C	Heating bath L × W × D mm	Power rating W	Order No.
(1)	LS-1V-130	130	149×108×59	300	46 46 68161

For 2 heating blocks HB-LS1, 1 heating block HB-LS2 or 4 heating blocks HB-LS1H

	Type	Temperature max. °C	Heating bath L × W × D mm	Power rating W	Order No.
(2)	LS-2V-130	130	149×215×59	600	46 46 78162

Heating blocks HB-LS1H for Eppendorf vessels L/W/H 148 × 53 × 46 mm

	Type	Wells for ml	Holes	Order No.
	HB-LS1H-48-0.2-EPS	0.2	48	46 46 80056

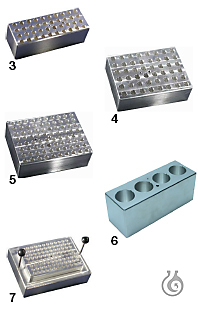

(3)	HB-LS1H-40-0.5-EP	0.5	40	46 46 80057
	HB-LS1H-40-0.2-EP	0.2	40	46 46 80006
	HB-LS1H-24-1.5-EP	1.5	24	46 46 80058
	HB-LS1H-24-2.0-EP	2.0	24	46 46 80059

Heating blocks HB-LS1 for Eppendorf vessels L/W/H 148 × 107 × 46 mm

	Type	Wells for ml	Holes	Order No.
	HB-LS1-96-0.2-EPS	0.2	96	46 46 80256
	HB-LS1-80-0.2-EP	0.2	80	46 46 80206
	HB-LS1-80-0.5-EP	0.5	80	46 46 80257
(4)	HB-LS1-48-1.5-EP	1.5	48	46 46 80258
	HB-LS1-48-2.0-EP	2.0	48	46 46 80259

Heating blocks HB-LS2 for Eppendorf vessels L/W/H 214 × 148 × 46 mm

	Type	Wells for ml	Holes	Order No.
(5)	HB-LS2-96-1.5-EP	1.5	96	46 46 80158
	HB-LS2-96-2.0-EP	2.0	96	46 46 80159

Heating blocks HB-LS1H for Falcon tubes L/W/H 148 × 53 × 46 mm

	Type	Wells for ml	Holes	Order No.
	HB-LS1H-12-15-FAL	15	12	46 46 80047
(6)	HB-LS1H-4-50-FAL	50	4	46 46 80048

Heating blocks HB-LS1 for Falcon tubes L/W/H 148 × 107 × 46 mm

Type	Wells for ml	Holes	Order No.
HB-LS1-24-15-FAL	15	12	46 46 80247
HB-LS1-10-50-FAL	50	4	46 46 80248

Heating blocks HB-LS1 for microtiter and PCR plates L/W/H 148 × 107 × 46 mm

	Type	Wells form	Holes	Order No.
	HB-LS1-MT-R	round	96	46 46 80202
	HB-LS1-MT-F	flat	96	46 46 80203
	HB-LS1-MT-S	pointed	96	46 46 80204
(7)	HB-LS1-PCR	pointed	96	46 46 80205

Cover plates made of PC for thermal insulation on request.
