Precise dosing and dispensing

General advantages

• Safety for continuous unattended operation: the motor will be switched off if a high thermal load situation occurs to preventatively avoid accidents
• High precision, even for flow rates starting at 0.005 ml/min
• When used with the optional remote control, the pump can be operated behind closed extraction hoods for simplification of filling processes
• For the use in cell biology just use a pump head which features convex rollers and does not squeeze the tubing as conventional rollers
• All models feature a smooth start operation which prevents spills and splashing media. The speed will ramp up slowly until your set rpm has been reached

For standard applications and liquid transfer

• At the press of a button the pump operates clockwise or counterclockwise
• Adjust the variable speed on the analog control knob from 10 – 600 rpm. Your speed is held constant even under changing loads
• This model features electronic speed control at an accuracy of ±2%

Pump drive PD 5001

• Flow rates of 0.65 – 861 ml/min with single-channel pump heads
• Low speed range from 10 – 120 rpm
• This pump drive is suitable for multi-channel operation
• Multi-channel flow rates from 0.005 – 364 ml/min
• Upgrade your PD 5001 for multi-channel operation in just minutes with a pump head adaptor: P/N 523-50013-00

Pump drive PD 5006

• Flow rates of 3.0 – 4,151 ml/min with single-channel pump heads
• High speed range from 50 – 600 rpm
• This pump drive is not suitable for multi-channel operation

• Control the speed (rpm) in a clockwise or counterclockwise direction and On/Off via analog interface for 1–10 V or 4–20 mA
• Adjust the variable speed on the analog control knob from 5.0 – 600 rpm. Your speed is held constant even under changing loads
• This model features electronic speed control at an accuracy of ±0.5%
• This model connects to an optional foot pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety or ease of use in multiple sample fills
• At the press of a button the pump operates clockwise or counterclockwise
• A press of the max button accelerates the filling and draining of your tubing

PD 5101

• Flow rates of 0.36 – 813 ml/min with single-channel pump heads
• Low speed range from 5 – 120 rpm
• This pump drive is suitable for multi-channel operation
• Multi-channel flow rates from 0.005 – 329 ml/min
• Upgrade your PD 5101 for multi-channel operation in just minutes with a pump head adaptor: P/N 523-51013-00

PD 5106

• Flog rates of 1.0 – 4,056 ml/min with single-channel pump heads
• High speed range from 24 – 600 rpm
• This pump drive is not suitable for multi-channel operation

Reproducibility for pumping and dosing

• Control the speed (rpm) in clockwise or counterclockwise direction and On/Off via analog interface for 0 – 10 V, 4 –20 mA or digital RS 232 interface
• Flow characteristic of pump heads in combination with various tubing diameters is pre-programmed for accurate flow rate numbers
• Digital read-out of:
  Speed (rpm), Tubing diameter, Flow rate in ml/min, Dosing volume, Interval dosing, Pause function
• Easily change all process parameters via these buttons
• This model connects to an optional foot pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety or easy use in multiple sample fills
• This model feature electronic speed control and an accuracy of ± 0.5%
• A press of the max button accelerates the filling and draining of your tube
• At the press of a button the pump operates clockwise or counterclockwise
• Calibrate your flow volume and flow rate individually

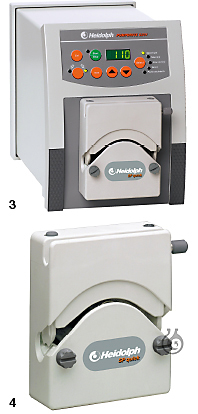

Pumpdrive PD 5201

• Flow rates of 0.36 – 813 ml/min with single-channel pump heads
• Low speed range from 5 – 120 rpm
• This pump drive is suitable for multi-channel operation
• Multi-channel flow rates from 0.005 – 329 ml/min
• Upgrade your PD 5201 for multi-channel operation in just minutes with a pump head adaptor: P/N 523-52013-00

Pump drive PD 5206

• Flow rates of 1.0 – 4,056 ml/min with single-channel pump heads
• High speed range from 24 – 600 rpm
• This pump drive is not suitable for multi-channel operation

SP quick

• Fast and convenient tube changes
• Low pulstation due to 5 roller system
• Pump head feature ball gearings
• Rollers made of stainless steel
• For tubes with a 1.6 mm or 2.5 mm wall thickness (wt)
• Depending on drive and tubing, the flow rate ranges from 0.38 to 3,436 ml per minute

SP standard

• Recommended for standard applications
• Convex rollers do not squeeze or crush organic cell cultures
• Pump heads features ball bearings
• Rollers made of stainless steel and polyamide
• For tubes with a 1.6 mm or 2.5 mm wall thickness (wt)
• Depending on drive and tubing, the flow rate ranges from 2.0 to 4,151 ml per minute

SP vario

• Suitable for most Heidolph tubing due to adjustable roller spacing
• Convex rollers do not squeeze or crush organic cell cultures
• Pump head features ball bearings
• Rollers made of stainless steel and aluminium
• Depending on drive and tubing, the flow rate ranges from 2.0 to 4,151 ml per minute
