Main -> Laboratory facilities -> Protective equipment -> Fume hoods
Mobile Gas Flue with Filter, LAT

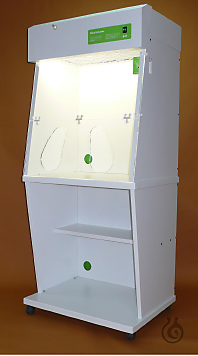

ECO² G/ECO² GS mobile gas flue

The flues allow for safe handling of all chemical substances in all kinds of laboratories.
The models of type G work with a filter system which consists of an active coal filter and are used for gas filtration.
The models of type GS are equipped with both an activated carbon filter and a HEPA filter and are used for gas and particle filtration. The HEPA filter comply with class H14 (EN-1822).

All flues are equipped with a pre-filter made of synthetic bio-fibre to filter atmospheric dust (class G4 according to standard EN-779). The type of filter is selected to match the chemicals used; combination filters are available as well.
As a standard, the flues are equipped with an anemometer and an apparatus for checking the saturation degree of the filter. 3 years' warranty.



Technical data:

ECO2 G

ECO2 GS

Average airflow:

175 m3/h

170 m3/h

Average face velocity:

0,5 m/s

0,5 m/s

Internal flue volume:

0,287 m3

0,287 m3

Voltage-frequency:

220 V, 50 Hz

220 V, 50 Hz

Inner dimensions (L×D×H):

755 × 560 × 760 mm

770 × 560 × 760 mm

External dimensions (L×T×H):

780 × 600 × 950 mm

780 × 600 × 1010 mm


ArticleOrder No.
Mobile gas flue with filter, type ECO2 G10 20 12001
Mobile gas flue with filter, type ECO2 GS10 20 12002



The filter matching your applications must be ordered separately!

Activated carbon filter
ArticleOrder No.
Type A (organic fumes)10 20 12120
Type BE (inorganic acids)10 20 12121
Type F (Aldehyde and organic compounds)10 20 12122
Type K (NH3 and amines)10 20 12123
Type ABEK (composite filter)10 20 12124


Activated carbon filter for GS
ArticleOrder No.
Type A (organic fumes)10 20 12140
Type BE (inorganic acids)10 20 12141
Type F (Aldehyde and organic compounds)10 20 12142
Type K (NH3 and amines)10 20 12143
Type ABEK (composite filter)10 20 12144
Type Mg (mercury)10 20 12145
HEPA-Filter for GS10 20 12146


Optional accessories
ArticleOrder No.
Lighting10 20 12136
Movilair, mobile rack10 20 12135
Fluid retention tray10 20 12134
Filter test kit10 20 12137

for determining the level of filter saturation
