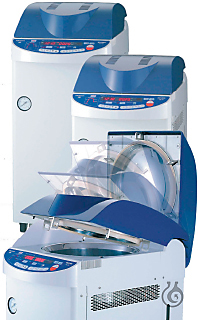

Steam Sterilizers, HMC

Vertical very compact designed steamsterilizers, sizes 50 and 80 litres. 12 programmes extensive accessories like temperatur sensor, air cooling, GLP set and Documentation software PC documentation SEGO® Soft available.

Equipment:

  • Fully automatic microprocessor controlled
  • 12 installed programs
  • Timer-controlled night program - load the objects in the evening, remove them sterilized the next morning
  • AGAR program with thermostatic heating for AGAR Production
  • Liquid program with removal temperature of 95°C
  • Solid program for glass and instruments
  • Steam pot function for liquefying AGAR
  • Low drinking water consumption (max. 1 litre/batch)
  • Progress display, big illuminated display
  • Electronic pressure switch, pressure and temperature control
  • Exhaust bottle for condensation
  • Drain valve
  • Bottom plate for baskets and cans
  • On wheels
  • RS 232 for process documentation
  • Air-cooling by pressing a bottom usable
  • Lid-opening and lid-closing by pressing a bottom

Safety:

  • Safety valve
  • Pressure control of max. pressure
  • Automatic lid-lock, sensor-monitored, and limited by spring resistance. Jamming and injuring hands is impossible.
  • Safety thermostate for work area and for heating elements
  • Sterilising parameter after not changeable after start of program
  • Approval by TÜV Bayern e.V., CE-mark



Properties:

Model HG:

Steam is generated directly in the chamber; air cooling comprised as a standard

Model HGS:

Separate steam generator, water cooling comprised as a standard

Model HGD:

In addition to the steam generator of model HGS, the HGD has a vacuum pump for fractioned pre-vacuum and drying (post-vacuum), water cooling comprised as a standard.




General technical data:

Operating temperature:

105°C – 135°C

Warming temperature:

45°C – 60°C

Max. operating pressure:

2.5 bar

Timer:

variabel, 1 minute to 7 days

Sterilising time:

variabel, 1 to 300 minutes

Locking mechanism:

automatical

Safety marks:

CE, TÜV Bayern e.V. / TÜV Rheinland

Vessel material:

SUS304 (stainless steel)

Safety features:

Electromechanical safety closure, safety valve, low-water interrupt, overpressure protection switch, overheating protection switch, circuit breaker, diagnostic messages (visible and audible)


HG Serie electrical heated directly in the chamber, with quick cooling system
(1)(2)(3)(4)
TypeHG 50HG 80HG 113HG 133
Chamber volume l6085.1131.7152.2
Useful volume l50.276108129
Chamber dim. Ø×H mm364×482364×730500×552500×656
Outer dim. W×D×H mm455×691×890455×691×1030686×870×930686×870×1034
Space required W×D×H mm465×970×1250465×970×1390700×1150×1350700×1150×1450
Weight kg6273137145
Power kW33.85.85.8
Voltage VAC 230/240AC 230/240AC 400AC 400
Max. operating temp. °C135135138138
DocumentationIntegrated printer/
RS232/
USB (optional)		Integrated printer/
RS232/
USB (optional)		Integrated printer/
Memory Stick/
USB (optional)		Integrated printer/
Memory Stick/
USB (optional)
Order No.10 60 5210110 60 5210210 60 5210310 60 52104



Carriage on request

HGS series with steam generator and water-cooling
TypeHGS 113HGS 133
Chamber volume l131.7153.4
Useful volume l113133
Chamber dim. Ø×H mm500×576500×680
Outer dim. W×D×H mm686×870×930686×870×1034
Space required W×D×H mm700×1150×1350700×1150×1450
Weight kg153161
Power kW6.87.1
Voltage VAC 230/240AC 230/240
Max. operating temp. °C138138
DocumentationIntegrated printer/
USB (optional)		Integrated printer/
USB (optional)
Order No.10 60 5210510 60 52106



Carriage on request

HGD series with vacuum, steam generator and water-cooling
TypeHGD 113HGD 133
Chamber volume l131.7153.4
Useful volume l113133
Chamber dim. Ø×H mm500×576500×680
Outer dim. W×D×H mm686×870×930686×870×1034
Space required W×D×H mm700×1150×1350700×1150×1450
Weight kg184192
Power kW6.87.1
Voltage VAC 400AC 400
Max. operating temp. °C138138
DocumentationIntegrated printer/USB (optional)Integrated printer/USB (optional)
Order No.10 60 5210710 60 52108



Carriage on request

Options and accessories
ArticleOrder No.
Flexible thermo couple10 60 55101
Automatic water supply10 60 55112
Exhaust air filter for sterilisation48 60 50004
Loading basket10 60 55109
Loading basket with collecting tub10 60 55110
Loading basket exalted with tub10 60 55105
Loading bucket10 60 55108
Process documentation SEGO® Soft, 1 license10 60 55030



Matching loading baskets and buckets available on request.
