1 VISOCOLOR® enviroment case
With photometer PF-12 for the determination of ammonium, carbonate hardness, iron, total hardness, nitrate, nitrite, pH 4.0 – 9.0 and phosphate.
| Article | Order No. | |
| VISOCOLOR® environment case | 80 46 14304 | |

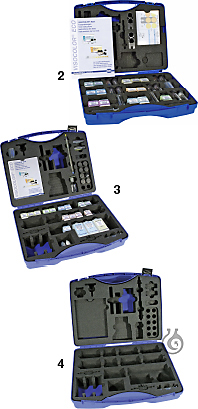

2 VISOCOLOR®ECO analysis case
For the colorimetric determination of ammonium, carbonate hardness, total hardness, nitrate, nitrite, pH 4.0 – 9.0 and phosphate.
| Article | Order No. | |
| VISOCOLOR® ECO analysis case | 80 46 31001 | |
3 VISOCOLOR® analysis case
The VISOCOLOR® reagent case contains the following test kits: |
Alkalinity AL 7 (total): | accuracy 0.2 mmol/l or 0.5 °d |
Ammonium 3: | 0.2 – 3 mg/l NH4+ |
Total hardness H 20 F: | accuracy 0.1 mmol/l or 0.5 °d |
Nitrite: | 0.02 – 0.50 mg/l NO2- |
pH 4.0 – 9.0: | pH 4.0 – 9.0 |
Phosphate: | 0.2 – 5 mg/l P |
Oxygen SA 10: | accuracy 0.2 mg/l O2 (oxygen deficit) |
Temperature: | -10 to +60 °C |
Additionally the case can hold additional VISOCOLOR® test kits. |
Shelf life of reagents at least 18 months. |
As refills for this VISOCOLOR® reagent case you can use the following test kits:
Alkalinity AL 7, ammonium 3, total hardness H 20 F, nitrite, pH 4.0 to 9.0, phosphate, oxygen SA 10
The VISOCOLOR® reagent case without test kits allows the individual combination of test kits from the complete range of VISOCOLOR® programme and pH indicator papers, pH-Fix test strips, qualitative test papers and semi-quantitative QUANTOFIX® test strips, e.g. for applications in:
boiler water conditioning, cooling water conditioning, water treatment, irrigation, beverage industries, breweries, printing industries, education, corrosion prevention, surface finishing, construction industry, aquaculture and others.
| Article | Order No. | |
| VISOCOLOR® analysis case without test kits | 80 46 31307 | |
5 Soil case
The reagent case for soil analysis comes complete with a comprehensive handbook for the determination of: soil structure, pH, nitrate, ammonium, phosphate and potassium. Disposables and replacement parts can be purchased separately.
6 Compact photometer PF-12
- More than 100 pre-programmed methods
- Automatic wavelength adjustment
- Backlit graphic display with intuitive user guidance
- Data storage according to GLP
- USB interface for data transfer, update and power supply
The compact photometer PF-12 is the logical result of a further development based on our photometer PF-11. The PF-12 impresses with modern design and precise analytic. Pre-programmed tests, automatic wavelength adjustment and the intuitive user guidance allow fast and easy operation. Results are stored according to GLP and transferred safely to your PC with the included PC-software.
Type: | Filter photometer with microprocessor control, self-test and auto-calibration |
Optics: | Automatic filter wheel with 7 interference filters |
Wavelengths: | 345 / 436 / 470 / 540 / 585 / 620 / 690 nm plus 1 compartment for additional filters |
Measuring modes: | Over 100 pre-programmed tests (NANOCOLOR® tube tests and VISOCOLOR® ECO tests) adsorbance, transmission, factor, standard, 10 freely programmable methods |
Data memory: | 200 results, GLP conform |
Display: | Backlit graphic display, 64 × 128 pixels
Result in respective unit, date, time, sample number, sample location, dilution |
Power supply: | Via USB power supply, standard or rechargeable batteries, car battery |
Dimensions: | 215 × 100 × 65 mm |
Weight: | 0.7 kg |
Delivery contents: | Compact photometer PF-12 incl. software DVD, manual, 4 batteries, 4 empty test tubes, funnel, beaker, syringe, USB cable, calibration cuvette and certificate in rugged case |
7 VISOCOLOR® SCHOOL reagent case
The VISOCOLOR®SCHOOL reagent case is especially designed for schools and caters to the needs of both students and teachers. All reagents are approved to be used in schools in Germany (GUV-SR 2004 directive) and can be disposed of easily just down the drain without any harm to the environment.
| Article | Order No. | |
| VISOCOLOR® SCHOOL reagent case | 10 46 93100 | |
|
|
|
